彈簧式PCB接線端子

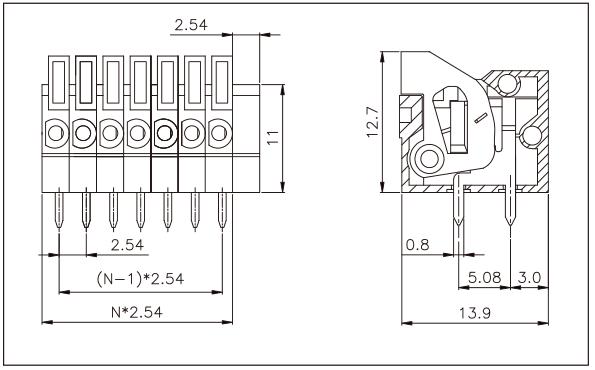

XL141R-2.54
產品間距
2.54mm
接線方便穩固可靠,組合拼裝技術增加了產品的靈活多樣性;
產品設計符合IEC60998、UL1059等國際標準。
產品詳情
|
材質&參數 MATERIAL
|
||
|
螺絲 Screw |
||
|
彈片 Reed |
不銹鋼 Stainless steel |
|
|
焊針 Pin header |
黃銅，鍍錫 Brass, Tin plated | |
|
塑件 Plastic parts |
PA66, UL94V-0 | |
|
電氣性能 ELECTRICAL |
UL | IEC |
|
額定電壓 Rated voltage |
150V | 130V |
|
額定電流 Rated current |
5A | 6A |
|
接觸電阻 Contact resistance |
20mΩ | |
|
絕緣電阻 Insulation resistance |
500MΩ/DC500V | |
|
耐電壓 Withstanding voltage |
AC1250V/1min | |
|
使用線徑 Wire range |
24-18AWG 1.0mm2 |
|
|
機械性能 MECHANICAL |
||
|
溫度范圍 Temp. range |
-40℃~+105℃ | |
|
瞬時溫度 Max. soldering |
+250℃, 5sec | |
|
扭矩 Torque |
||
|
剝線長度 Strip length |
11mm | |
